BG1602-series

Product description

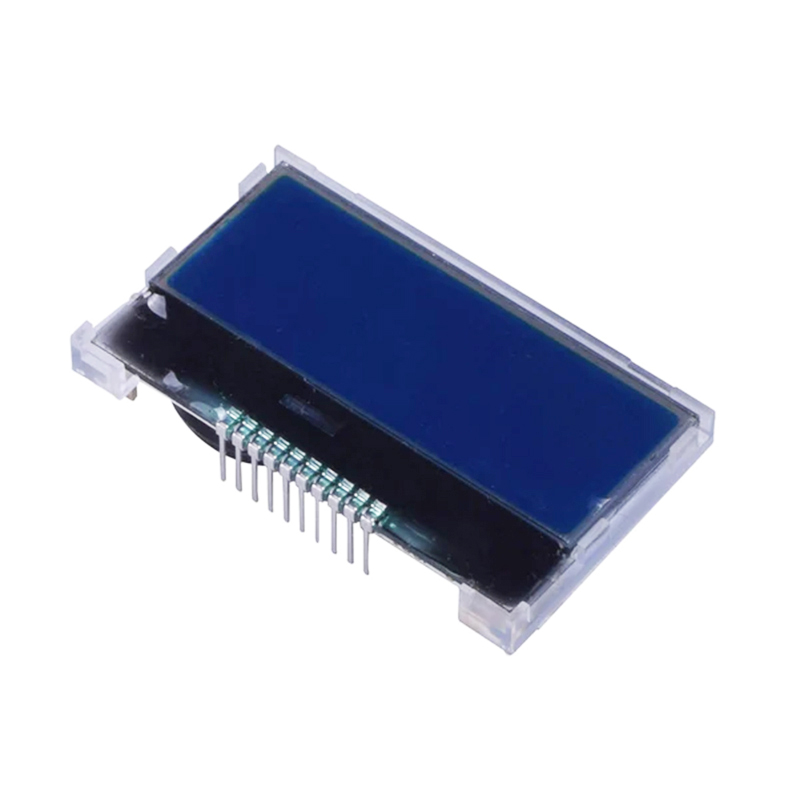

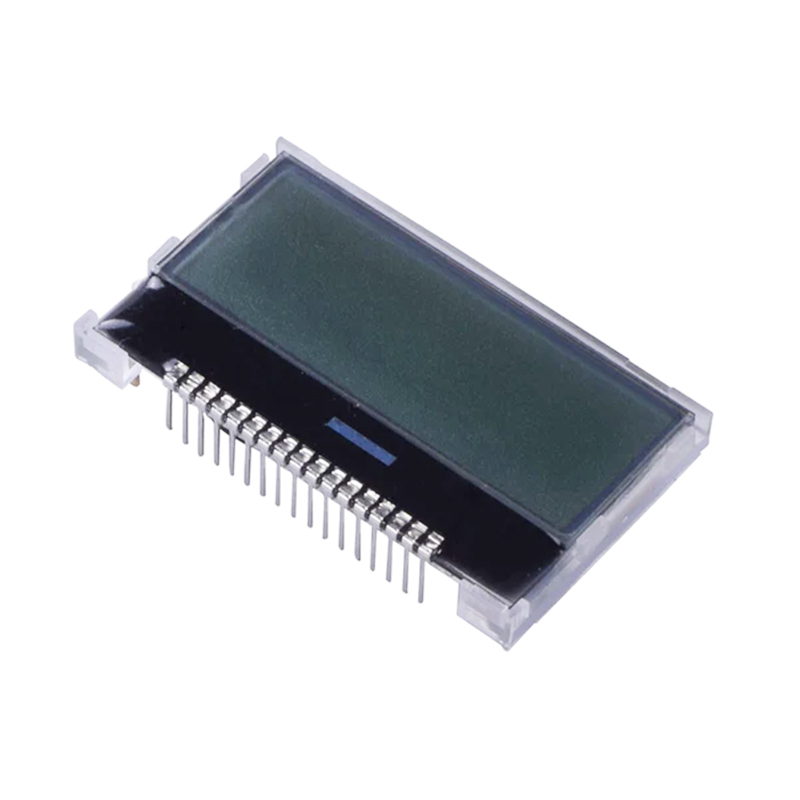

Bocen 16x2 Character COG Displays
Return to product list
No.
Specifications
Part Number
Tech.
Display Mode
Structure
Outline Size (LCM)(mm)
Outline Size (LCD)(mm)
Viewing Area(mm)
Controller IC
Opt (°C)
Interface
Viewing Direction
Backlight
Drawing/Datasheet
01
BG1602-01
COG
STN/B/M
LCD+IC+FPC
64.90 x 27.70 x 2.80
64.90 x 27.70/20.20 x 2.80
62.40 x 17.60
SPLC792A
-10°C ~ +60°C
I2C
12 o'clock
No
Icon
02
BG1602-03
COG
STN/Y-G/P
LCD+IC+PIN
71.03 x 29.00 x 6.00
68.60 x 20.00/26.00 x 2.80
64.60 x 16.00
ST7032i
-0°C ~ +50°C
I2C
6 o'clock
No
Icon
03
BG1602-04
COG
FSTN/B-W/F
LCD+IC+FPC+BL
72.10 x 29.60 x 6.30
61.00 x 15.10
ST7032i
-20°C ~+70°C
6 o'clock
White
Icon
04
BG1602-05
COG
FSTN/N/M
LCD+IC+FPC+BL
71.00 x 27.00 x 5.00
68.60 x 19.00/25.00 x 2.80
56.60 x 16.00
SPLC792A
-20°C ~+70°C
I2C
12 o'clock
White
Icon
05
BG1602-06
COG
STN/Blue/N
LCD+IC+FPC+BL
56.50 x 25.80 x 5.00
54.00 x 17.80/23.80 x 2.80
51.00 x 14.80
SPLC792A
-20°C ~ +70°C
I2C
12 o'clock
White
Icon
06
BG1602-07
COG
DFSTN/N/M
LCD+IC+FPC
44.00 x 21.00 x 2.80
44.00 x 17.00/21.00 x 2.80
40.00 x 13.00
ST7032i
0°C ~ +50°C
I2C
12 o'clock
No
Icon
07
BG1602-08
COG
DFSTN/N/M
LCD+IC+FPC
64.00 x 22.60 x 2.80
64.00 x 18.10/22.60 x 2.80
61.00 x 15.70
ST7032i
0 ~+50°C
I2C
12 o'clock
No
Icon
08
BG1602-09
COG
STN/Blue/N
LCD+IC+FPC+BL
56.50 x 25.80 x 5.00
54.00 x 17.80/23.80 x 2.80
51.00 x 14.80
SPLC792A
-20 ~70°C
I2C
12 o'clock
White
Icon
09
BG1602-10
COG
DFSTN/N/M
LCD+IC+FPC
68.60 x 25.00 x 2.80
68.60 x 20.00/25.00 x 2.80
66.20 x 17.60
SPLC792A
-20°C ~+70°C
4 wire SPI
12 o'clock
No
Icon
10
BG1602-11
COG
STN/Y-G/P
LCD+IC+PIN
67.00 x 28.70 x 8.00
61.00 x 15.70
NT7605
-20°C ~+70°C
Parallel (6800)
6 o'clock
Yellow-Green
Icon
11
BG1602-12
COG
STN/Grey/P
LCD+IC+PIN
64.00 x 25.50 x 2.80
64.00 x 18.50/25.50 x 2.80
61.00 x 15.50
ST7032i
0°C ~+50°C
I2C
12 o'clock
No
Icon
12
BG1602-13
COG
STN/Grey/P
LCD+IC+FPC
72.00 x 40.00 x 2.80
72.00 x 33.00/40.00 x 2.80
65.00 x 26.00
ST7032i
0°C~+50°C
4 wire SPI
12 o'clock
No
Icon
13
BG1602-14
COG
DFSTN/N/M
LCD+IC+FPC+BL
51.30 x 27.10 x 5.50
49.70 x 18.30/25.30 x 2.00
45.70 x 14.30
ST7032i
-30°C ~+80°C
I2C
6 o'clock
Blue
Icon
14
BG1602-15
COG
FSTN/P/T
LCD+IC+FPC+BL
72.10 x 29.60 x 6.30
69.50 x 17.50/27.40 x 2.80
61.00 x 15.00
ST7032i
-20°C ~+70°C
Parallel (6800) or SPI
6 o'clock
White
Icon
15
BG1602-16
COG
DFSTN/N/M
LCD+IC+FPC+BL
71.00 x 27.00 x 5.00
68.60 x 19.00/25.00 x 2.80
65.60 x 16.00
SPLC792A
-20°C ~+70°C
I2C
12 o'clock
White
16
BG1602-17
COG
DFSTN/N/M
LCD+IC+FPC
44.00 x 21.00 x 2.8
44.00 x 17.00/21.00 x 2.80
40.00 x 13.00
ST7032i
0°C ~+50°C
I2C
12 o'clock
No
Icon
17
BG1602-18
COG
DFSTN/N/M
LCD+IC+FPC+BL
77.70 x 39.60 x 7.00
76.00 x 37.80/31.80 x 2.80
70.00 x 27.60
SPLC792A-002A
-10°C ~+60°C
I2C
9 o'clock
White
Icon
18
BG1602-19
COG
STN/Blue/M
LCD+IC+PIN
58.00 x 28.00 x 2.80
58.00 x 28.00/22.00 x 2.80
54.68 x 19.00
ST7032I
0°C~50°C
I2C
6 o'clock
No
Icon
19
BG1602-20
COG
STN/Grey/T
LCD+IC+FPC+BL
108.00 x 41.50 x 5.80
94.00 x 41.50/37.00 x 2.80
91.00 x 34.00
ST7032
0°C ~50°C
I2C
12 o'clock
White
20
BG1602-21
COG
DFSTN/N/M
LCD+IC+PIN
54.00 x 26.00 x 2.80
54.00 x 26.00/22.00 x 2.80
50.00 x 16.00
ST7032
0°C ~+50°C
I2C
12 o'clock
No
Icon
21
BG1602-22
COG
DFSTN/N/M
LCD+IC+PIN
58.00 x 28.00 x 2.80
58.00 x 28.00/22.00 x 2.80
54.68 x 19.00
ST7032
0°C~+50°C
I2C
12 o'clock
No
22
BG1602-23
COG
STN/Blue/M
LCD+IC+PIN+BL
41.40 x 24.30 x 4.90
39.60 x 22.50/15.80 x 2.00
37.60 x 12.80
ST7032
-20°C ~+70°C
4 wire SPI
6 o'clock
White
Icon
23
BG1602-24
COG
FSTN/B-W/R
LCD+IC+FPC
102.00 x 34.00 x 2.80
102.00 x 34.00/28.00 x 2.80
98.00 x 24.00
ST7032I
-20°C ~+70°C
I2C
12 o'clock
No
Icon
24
BG1602-25
COG
STN/Blue/M
LCD+IC+PIN
74.00 x 38.00 x 2.80
74.00 x 38.00/32.00 x 2.80
70.00 x 28.00
ST7032I
-20°C~+70°C
4 wire SPI or I2C
12 o'clock
No
Icon
25
BG1602-26
COG
FSTN/B-W/T
LCD+IC+PIN
58.00 x 28.00 x 2.80
58.00 x 28.00/22.00 x 2.80
54.68 x 19.00
ST7032I
-20°C~70°C
I2C
12 o'clock
No
Icon
26
BG1602-27
COG
DFSTN/N/M
LCD+IC+PIN+BL
54.00 x 26.00 x 2.80
54.00 x 26.00/22.00 x 2.80
50.00 x 16.00
ST7032I
0°C~+50°C
I2C
12 o'clock
White
27
BG1602-28
COG
FSTN/B-W/T
LCD+IC+PIN+BL
106.20 x 31.60 x 10.30
92.00 x 29.60/23.00 x 2.80
89.60 x 20.60
ST7032
-10°C~+60°C
Parallel
12 o'clock
White
Icon
28
BG1602-29
COG
DFSTN/N/M
LCD+IC+PIN
73.40 x 37.40 x 2.80
73.40 x 37.40/31.40 x 2.80
67.40 x 26.40
ST7032
0°C ~+50°C
4 wire SPI
12 o'clock
No
Icon
29
BG1602-30
COG
FSTN/B-W/T
LCD+IC+PIN+BL
106.20 x 31.60 x 8.80
92.00 x 29.60/23.00 x 2.00
89.60 x 20.60
ST7032
-10 ~60°C
Parallel
12 o'clock
White
Icon
30
BG1602-31
COG
STN/P/F
LCD+IC+PIN
68.60 x 28.50 x 2.80
64.60 x 16.00
ST7032-0D
0°C ~+50°C
I2C
12 o'clock
No
Icon
