BG12824-series

Product description

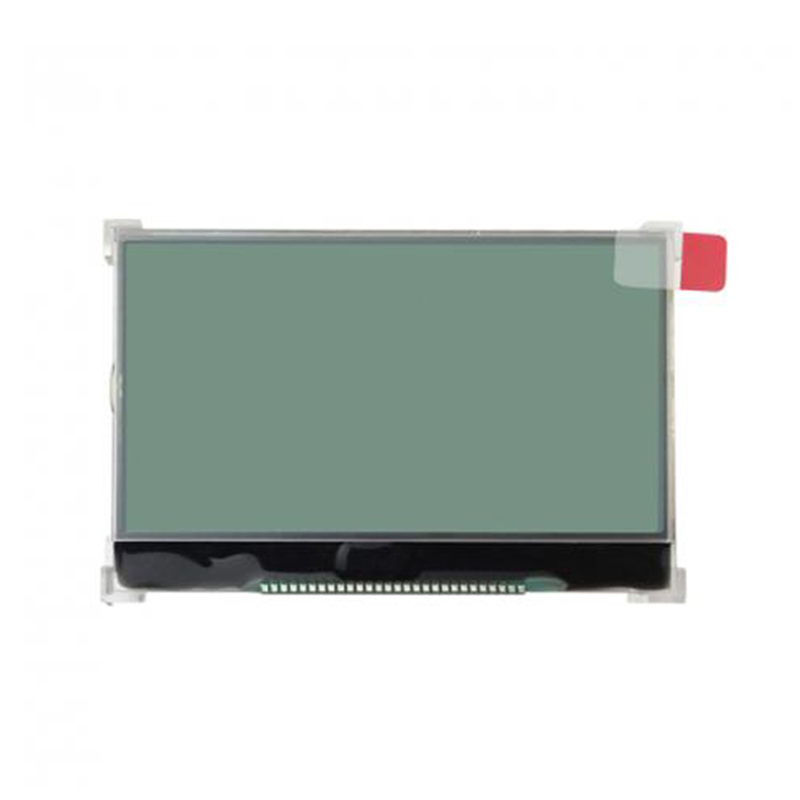

128x24 dot matrix COG Displays

Return to product list

No.

Specifications


Part Number

Tech.

Display Mode

Structure

Outline Size (LCM)(mm)

Outline Size (LCD)(mm)

Viewing Area(mm)

Controller IC

Opt (°C)

Interface

Viewing Direction

Backlight

Drawing/Datasheet

BG12824-01

COG

DFSTN/N/M

LCD+IC+FPC

40.00 x 20.00 x 2.80

40.00 x 20.00/15.00 x 2.80

37.00 x 12.00

ST7567

-20°C ~+70°C

4 wire SPI

6 o'clock

BG12824-02

COG

FSTN/P/M

LCD+IC+FPC+BL

37.40 x 16.90 x 2.95

36.00 x 12.00/15.50 x 2.00

33.60 x 9.20

ST7567A

-20°C ~+70°C

4 wire SPI

12 o'clock

White

BG12824-03

COG

STN/Grey/P/R

LCD+IC+FPC

35.00 x 12.00 x 2.10

30.00/35.00 x 12.00 x 2.10

27.00 x 8.00

ST7567S

-20°C~+70°C

I2C

12 o'clock

BG12824-04

COG

FSTN/B-W/T

LCD+IC+FPC+BL

37.40 x 16.90 x 2.95

36.00 x 15.5/12.00 x 2.00

33.60 x 9.20

ST7567A

-20°C~+70°C

4 wire SPI

12 o'clock

White

BG12824-05

COG

FSTN/P/M

LCD+IC+FPC

36.00 x 15.50 x 2.00

36.00 x 15.50/12.00 x 2.00

33.60 x 9.20

ST7567A

-30°C~+80°C

4 wire SPI

12 o'clock
