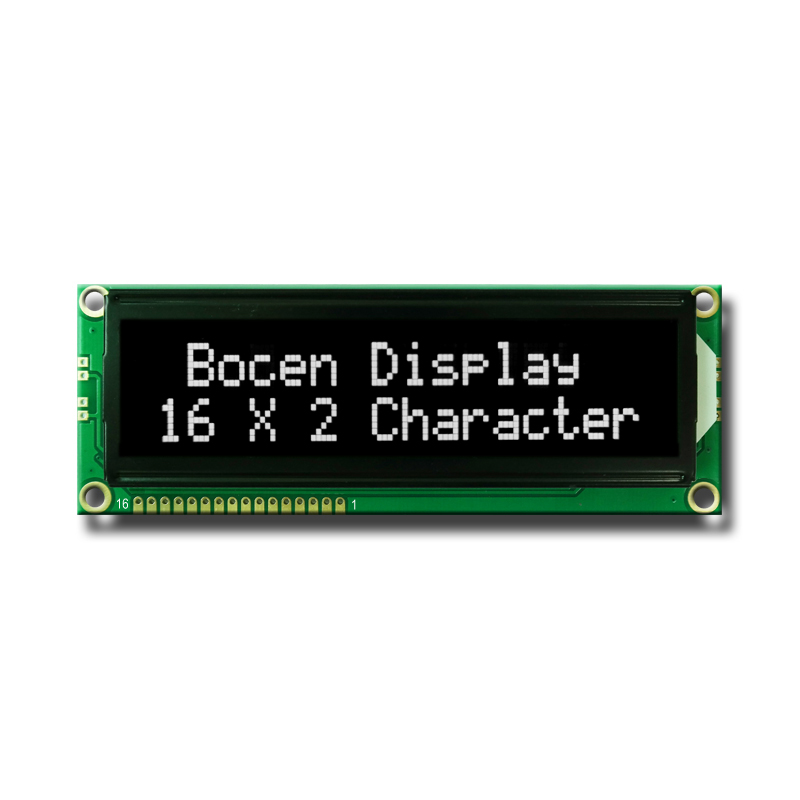

BB1602-series

Product description
Return to product list
No.
Specifications
Part Number
Resolution Pixel
Outline Size(mm)
Viewing Area(mm)
Active Area(mm)
Color
Voltage
Operating Temperature
Storage Temperature
Driver IC
Viewing Direction
Drawing/Datasheet
01
BB1602-01 (3.3V)
16x2
80.00 x 36.00 x 11.00
64.50 x 14.50
55.70 x 11.00
Blue/Yellow Green/Gray
VOP=4.7,VDD=3.3V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
02
BB1602-01 (5.0V)
16x2
80.00 x 36.00 x 11.00
64.50 x 14.50
55.70 x 11.00
Blue/Yellow Green/Gray
VOP=4.7,VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
03
BB1602-02
16x2
122.00 x 44.00 x 13.50
99.00 x 24.00
94.80 x 19.90
Blue/Yellow Green/Gray
VOP=4.8,VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
04
BB1602-02B
16x2
122.00 x 44.00 x 13.50
99.00 x 24.00
94.80 x 19.90
Black
VOP=9.0V,VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
12 O'clock
Icon
05
BB1602-03
16x2
80.00 x 36.00 x 11.80
64.30 x 16.00
55.46 x 10.76
Blue/Yellow Green/Gray
VOP=5.0, VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
06
BB1602-03A
16x2
80.00 x 36.00 x 11.80
64.30 x 16.00
55.46 x 10.76
Blue/Yellow Green/Gray
VOP=5.0, VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
07
BB1602-04
16x2
80.00 x 36.00 x 11.80
64.30 x 16.00
55.46 x 10.76
Blue/Yellow Green/Gray
VOP=5.0, VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
08
BB1602-05
16x2
84.00 x 44.00 x 11.80
64.30 x 16.00
56.20 x 11.50
Blue/Yellow Green/Gray
VOP=5.0,VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
09
BB1602-05A
16x2
84.00 x 44.00 x 11.80
64.30 x 16.00
56.20 x 11.50
Blue/Yellow Green/Gray
VOP=5.0,VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
10
BB1602-06
16x2
85.00 x 36.00 x 12.00
64.30 x 16.00
55.46 x 10.76
Blue/Yellow Green/Gray
VOP=5.0,VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
11
BB1602-07
16x2
85.00 x 30.00 x 13.00
64.30 x 16.00
55.46 x 10.76
Blue/Yellow Green/Gray
VOP=5.0,VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
12
BB1602-08
16x2
85.00 x 30.00 x 13.00
64.30 x 16.00
56.20 x 11.50
Blue/Yellow Green/Gray
VOP=5.0V, VDD=5.0V
-20~70℃
-30~80℃
AIP31066W2
6 O'clock
Icon
13
BB1602-09
16x2
100.00 x 38.80 x 13.00
80.20 x 20.40
76.37 x 16.02
Blue/Yellow Green/Gray
VOP=4.2V, VDD=5.0V
-20~70℃
-30~80℃
ST7066U-0A or EQV.
6 O'clock
Icon
14
BB1602-10
16x2
84.00 x 44.00 x 11.80
64.30 x 16.00
55.46 x 10.76
Blue/Yellow Green/Gray
VOP=4.2V, VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
15
BB1602-10A
16x2
84.00 x 44.00 x 11.80
64.30 x 16.00
55.46 x 10.76
Blue/Yellow Green/Gray
VOP=4.2V, VDD=5.0V
-20~70℃
-30~80℃
AIP31066 or EQV.
6 O'clock
Icon
