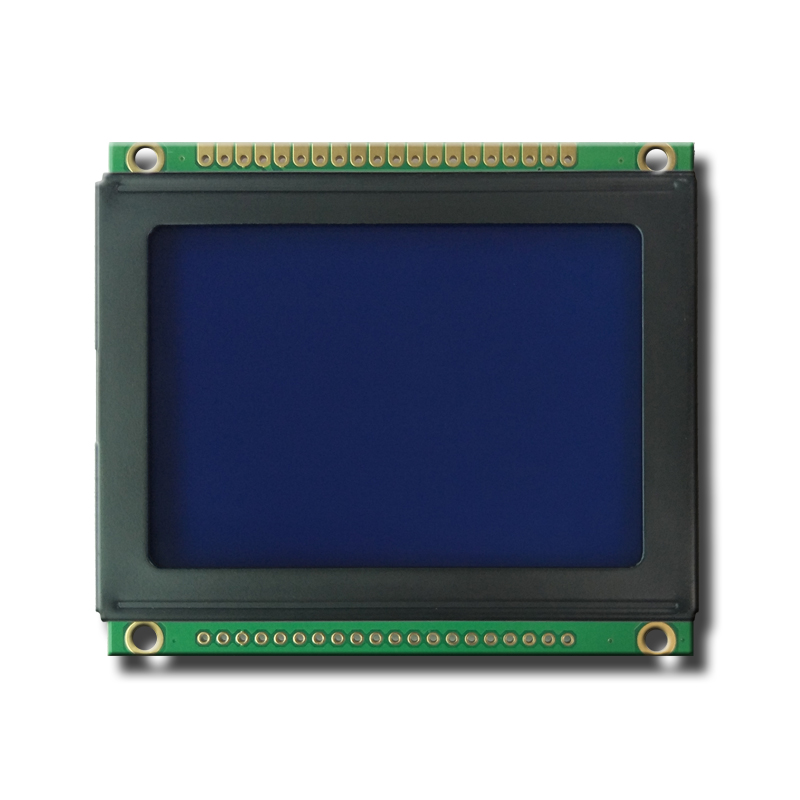

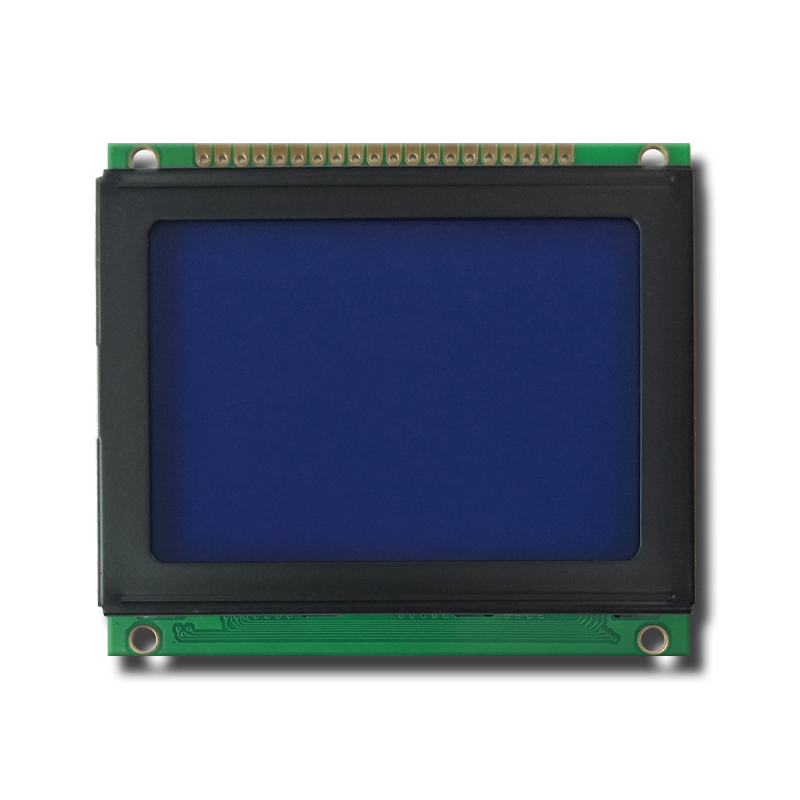

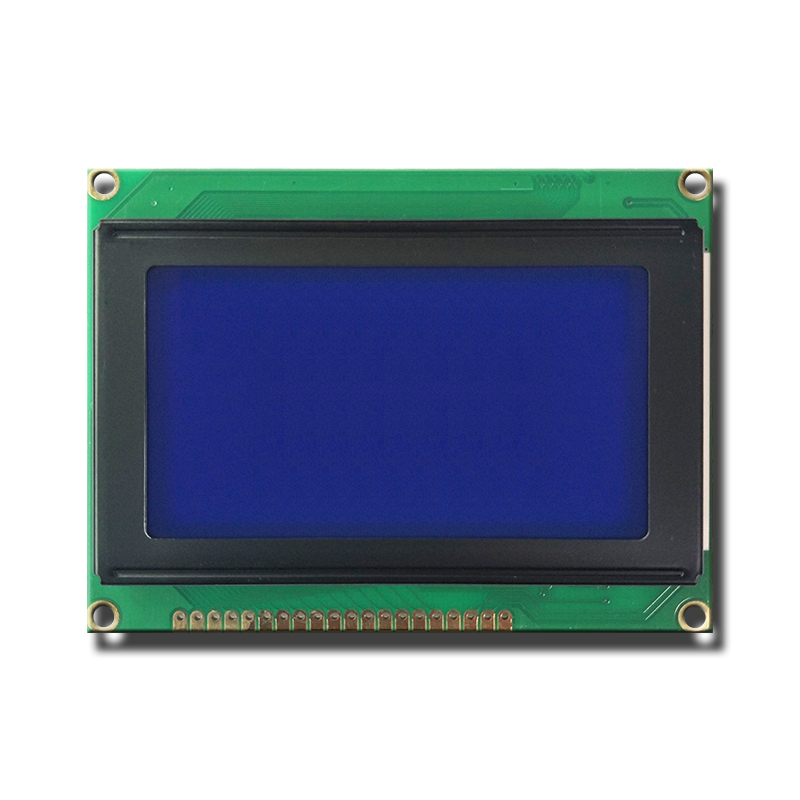

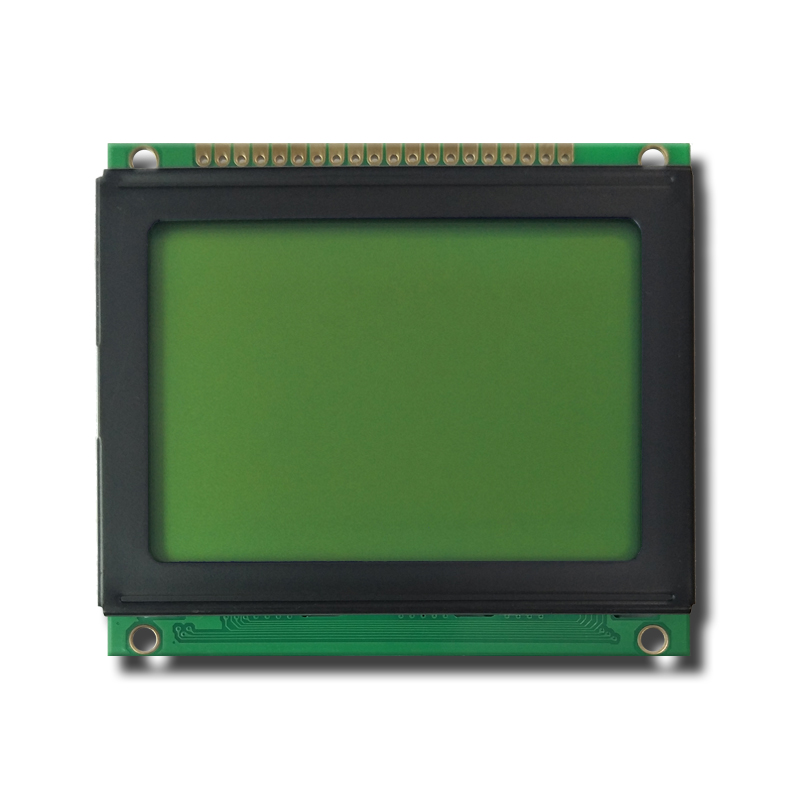

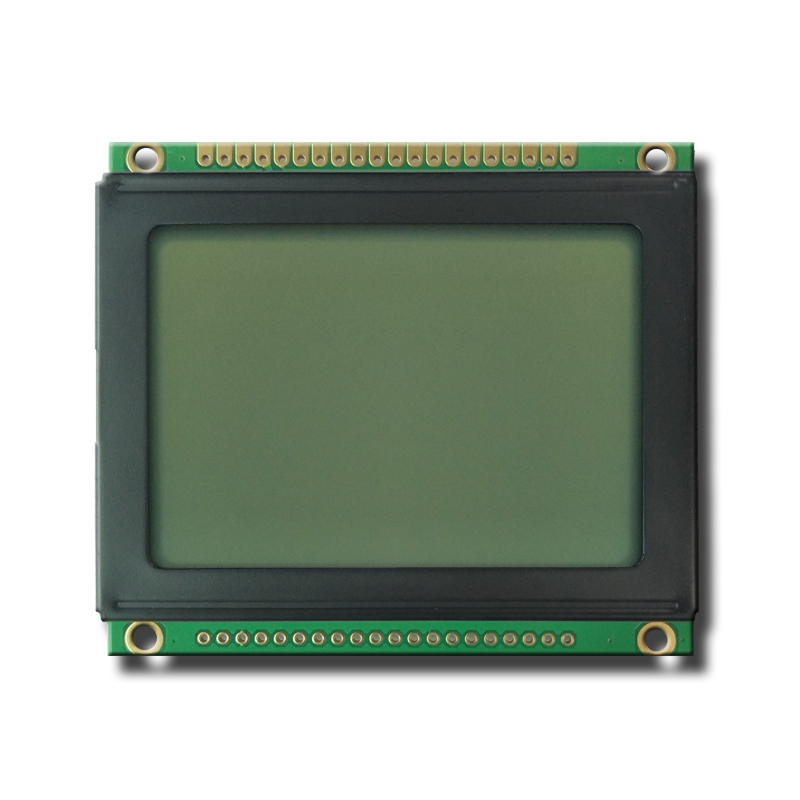

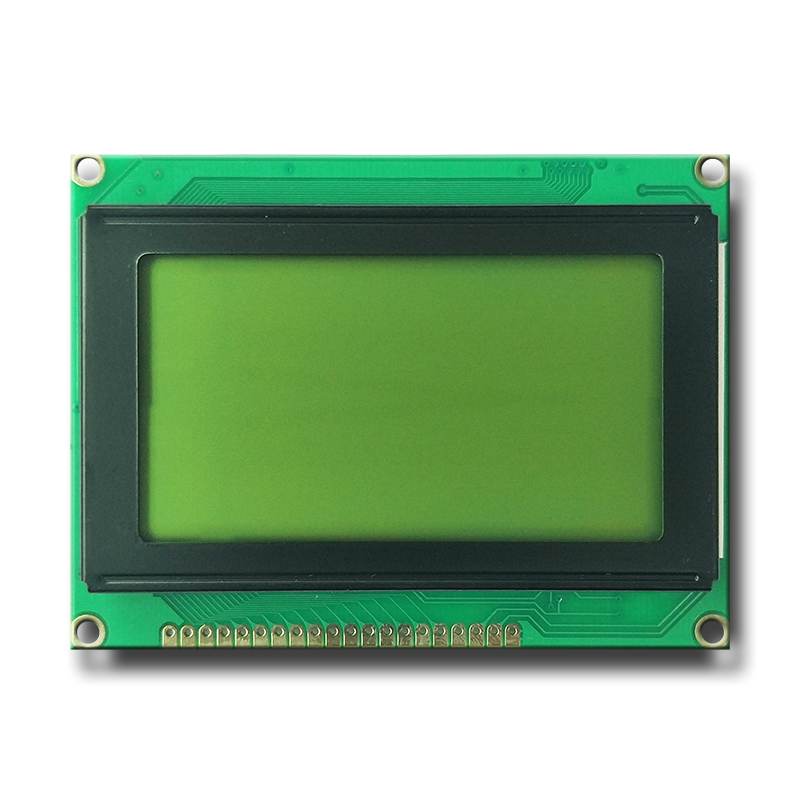

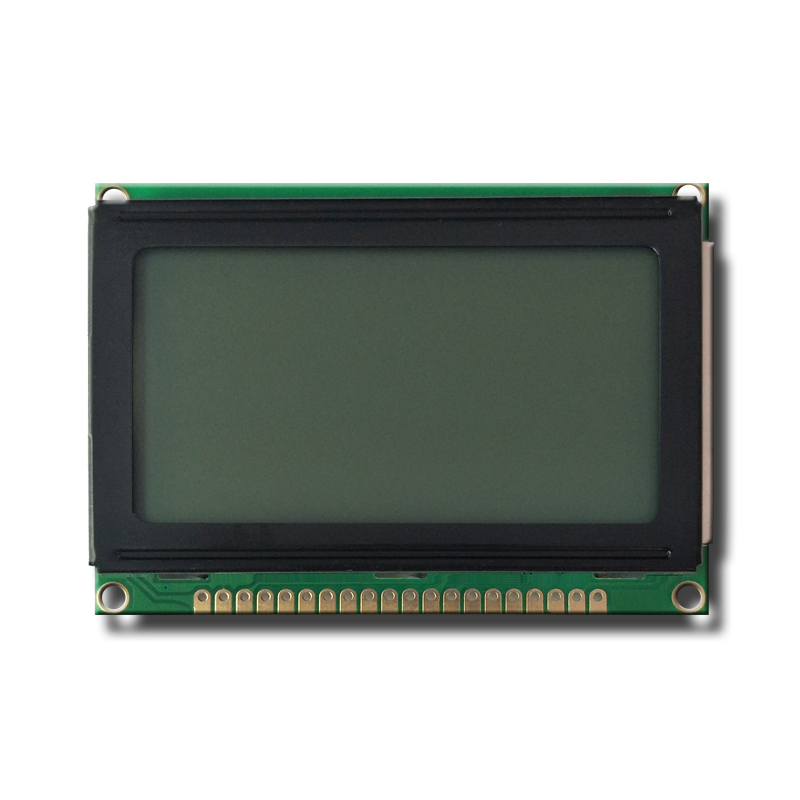

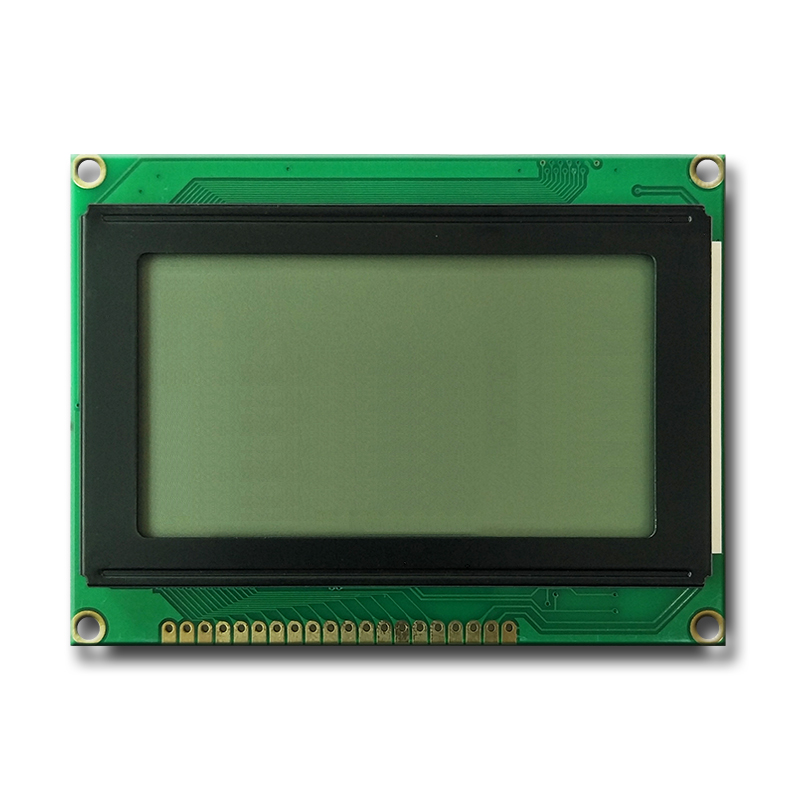

BB12864-series

Product description

Return to product list

No.

Specifications


Part Number

Resolution Pixel

Outline Size(mm)

Viewing Area(mm)

Active Area(mm)

Color

Voltage

Operating Temperature

Storage Temperature

Driver IC

Viewing Direction

Drawing/Datasheet

01

BB12864-01

128 x 64

75.00 x 55.00 x 12.00

60.00 x 32.40

55.00 x 27.48

Blue/Yellow Green/Gray

VOP=10.0V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

02

BB12864-02

128 x 64

75.00 x 52.70 x 9.50

60.00 x 32.60

55.00 x 27.48

Blue/Yellow Green/Gray

VOP=9.0V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

03

BB12864-03

128 x 64

78.00 x 70.00 x 12.00

62.00 x 44.00

56.28 x 38.36

Blue/Yellow Green/Gray

VOP=9.0V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

04

BB12864-04

128 x 64

106.00 x 69.00 x 12.00

62.00 x 44.00

56.28 x 38.36

Blue/Yellow Green/Gray

VOP=9.0V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

05

BB12864-05

128 x 64

73.20 x 60.00 x 9.30

62.00 x 40.00

56.28 x 34.52

Blue/Yellow Green/Gray

VOP=10.0V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

06

BB12864-06

128 x 64

78.00 x 70.00 x 12.00

62.00 x 44.00

56.28 x 38.36

Blue/Yellow Green/Gray

VOP=9.0V, VDD=5.0V

-20~70℃

-30~80℃

ICB-UCI6963/LQFP67 or EQV.

6 O'clock

07

BB12864-07

128 x 64

54.00 x 50.00 x 7.45

43.50 x 28.80

40.92 x 24.92

Blue/Yellow Green/Gray

VOP=8.75V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

08

BB12864-08

128 x 64

93.0 x 70.00 x 13.20

70.70 x 38.80

66.52 x 33.24

Blue/Yellow Green/Gray

VOP=10.5V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

09

BB12864-09

128 x 64

93.0 x 70.00 x 13.50

70.70 x 38.80

66.52 x 33.24

Blue/Yellow Green/Gray

VOP=10.5V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

10

BB12864-10

128 x 64

93.00 x 70.00 x 12.50

72.00 x 40.00

66.52 x 33.24

Blue/Yellow Green/Gray

VOP=10.5V, VDD=5.0V

-20~70℃

-30~80℃

AIP31107 / AIP31108 or EQV.

6 O'clock

11

BB12864-11

128 x 64

78.00 x 70.00 x 12.00

62.00 x 44.00

56.28 x 38.36

Blue/Yellow Green/Gray

VOP=5.0V, VDD=5.0V

-20~70℃

-30~80℃

AIP31020 or EQV.

6 O'clock
