BO0.96''-series

Product description
Return to product list
No.
Specifications
Part Number
Inch
Resolution
Outline Size
Viewing Area
Active Area
PIN Number
Color
Drive IC
Interface
Drawing/Datasheet
01
BO12864-01
0.96''
128x64 dots
24.74x16.90x1.42 mm
22.74x11.86 mm
21.744x10.864 mm
20 PIN
White
SSD1315Z
I2C / SPI
02

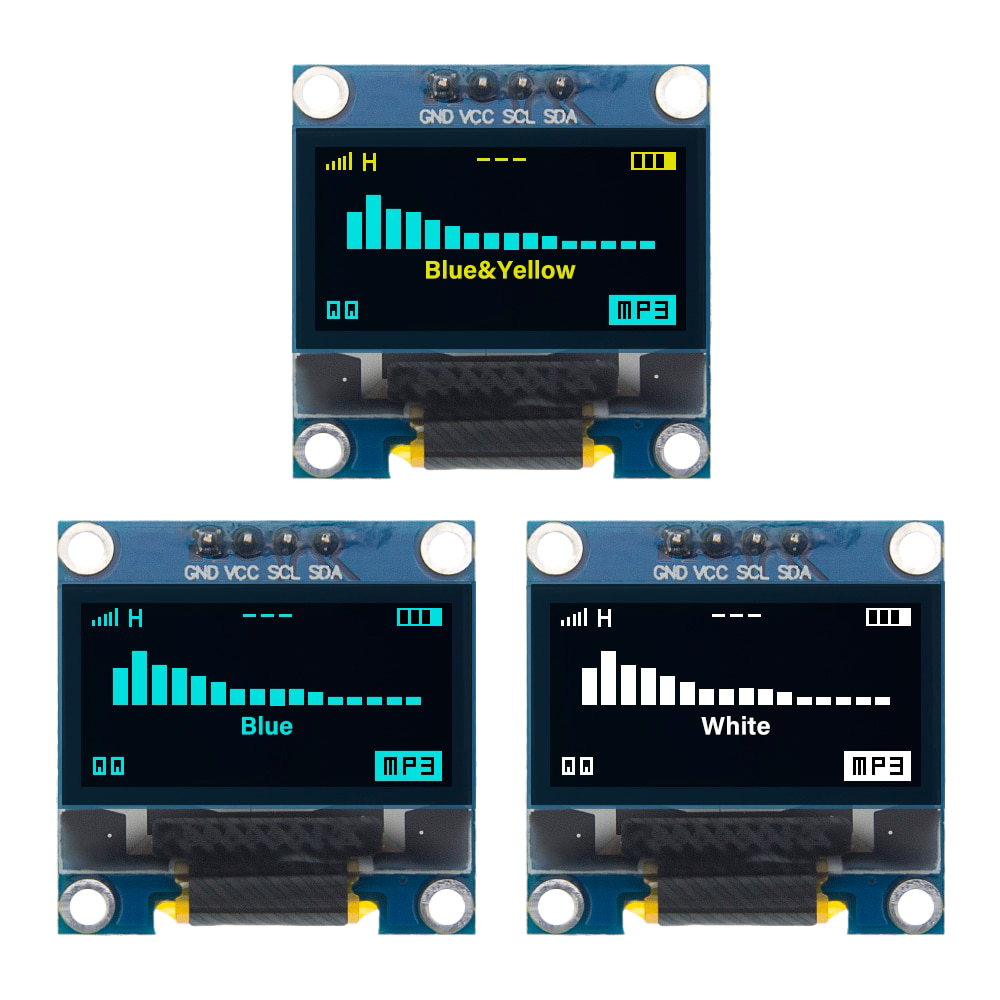

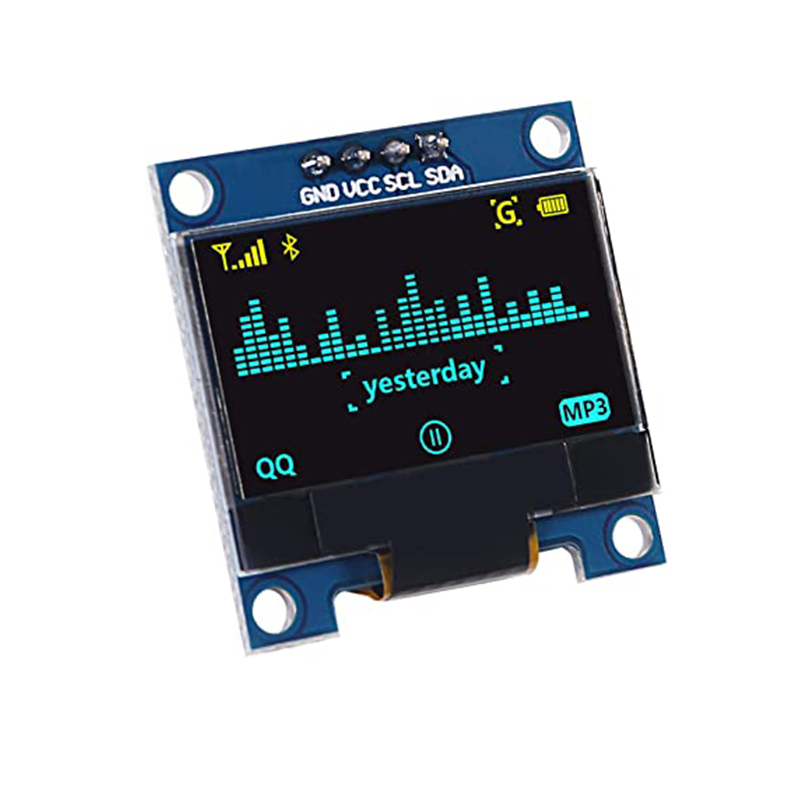

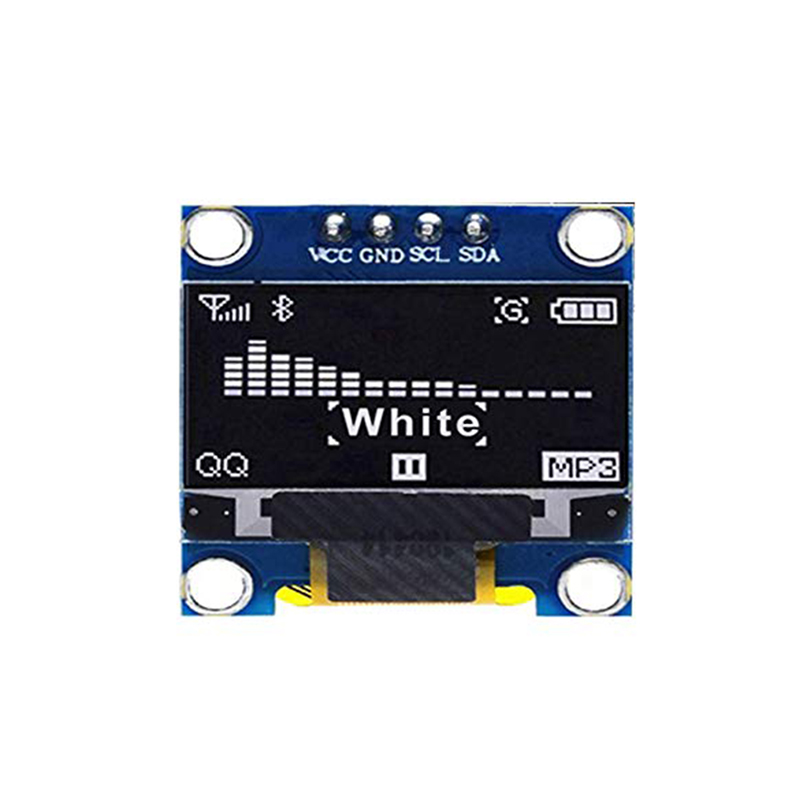

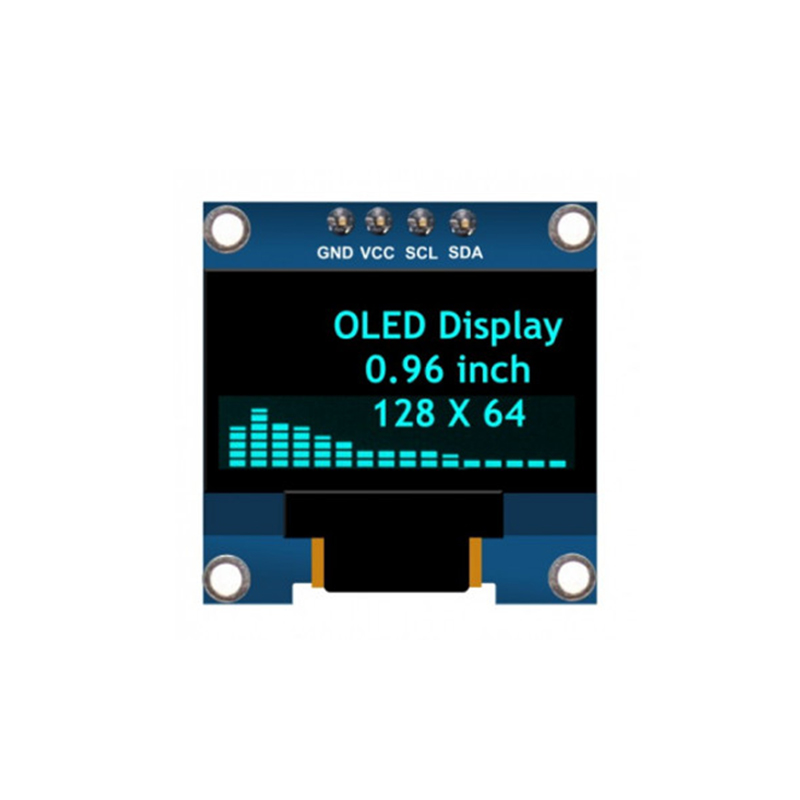

BO12864-10+PCB
0.96''
128x64 dots
27.50x27.80x2.61 mm
23.74x12.87 mm
21.75x10.86 mm
OLED: 30 PIN / PCB: 4 PIN
White or Blue
SSD1306
03
BO12864-10A+PCB
0.96''
128x64 dots
27.50x27.80x2.61 mm
23.74x12.87 mm
21.75x10.86 mm
OLED: 30 PIN / PCB: 4 PIN
White or Blue
SSD1306
04
BO12864-29
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x13.20 mm
21.74x11.20 mm
30 PIN
Yellow & Blue
SSD1306BZ
I2C / SPI
05
BO12864-34
0.96''
128x64 dots
24.74x16.90x1.42 mm
22.74x11.86 mm
21.744x10.864 mm
20 PIN
Blue
SSD1315Z
I2C / SPI
06
BO12864-37
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x12.864 mm
21.744x10.864 mm
30 PIN
White
SSD1306BZ
I2C / SPI
07
BO12864-62
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x12.864 mm
21.744x10.864 mm
30 PIN
White
SSD1306BZ
I2C / SPI
08
BO12864-137
0.96''
128x64 dots
24.74x16.90x1.42 mm
22.74x11.86 mm
21.744x10.864 mm
20 PIN
Yellow & Blue
SSD1315Z
I2C / SPI
09
BO12864-142
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x12.864 mm
21.744x10.864 mm
30 PIN
White
SSD1306BZ
I2C / SPI
10
BO12864-167
0.96''
128x64 dots
30.00x11.50x1.23 mm
24.384x7.584 mm
22.384x5.584 mm
15 PIN
Yellow & Blue
SSD1306BZ
SPI
11
BO12864-180
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x13.20 mm
21.74x11.20 mm
11 PIN
White
SSD1315Z
SPI
12
BO12864-185
0.96''
128x64 dots
24.74x16.90x1.42 mm
22.74x11.86 mm
21.744x10.864 mm
14 PIN
Yellow & Blue
SSD1315Z
SPI
13
BO12864-191
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x13.20 mm
21.74x11.20 mm
12 PIN
Yellow & Blue
SSD1315Z
SPI
14
BO12864-197
0.96''
128x64 dots
24.74x16.90x1.42 mm
22.74x11.86 mm
21.744x10.864 mm
24 PIN
White
SSD1315Z
SPI
15
BO12864-205
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x12.864 mm
21.744x10.864 mm
30 PIN
Blue
SSD1306BZ
I2C / SPI
16
BO12864-230
0.96''
128x64 dots
26.70x19.26x1.41 mm
23.74x12.864 mm
21.744x10.864 mm
30 PIN
White
SSD1306BZ
I2C / SPI
17
BO12864-240
0.96''
128x64 dots
30.00x11.50x1.23 mm
24.384x7.584 mm
22.384x5.584 mm
18 PIN
White
SSD1306BZ
SPI
18
BO12864-257
0.96''
128x64 dots
30.00x11.50x1.23 mm
24.384x7.584 mm
22.384x5.584 mm
15 PIN
Blue
SSD1306BZ
SPI
19

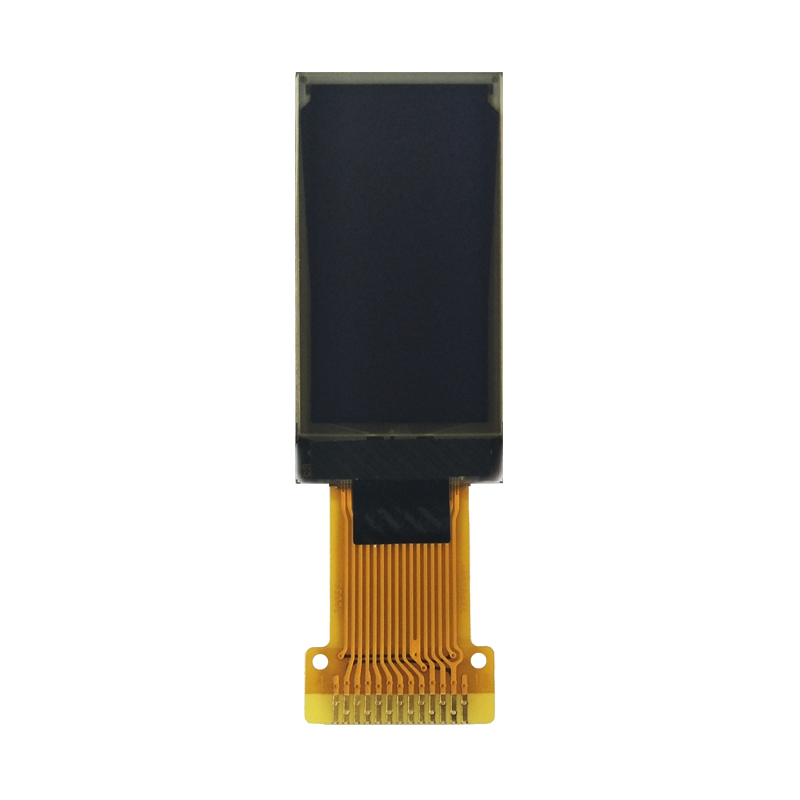

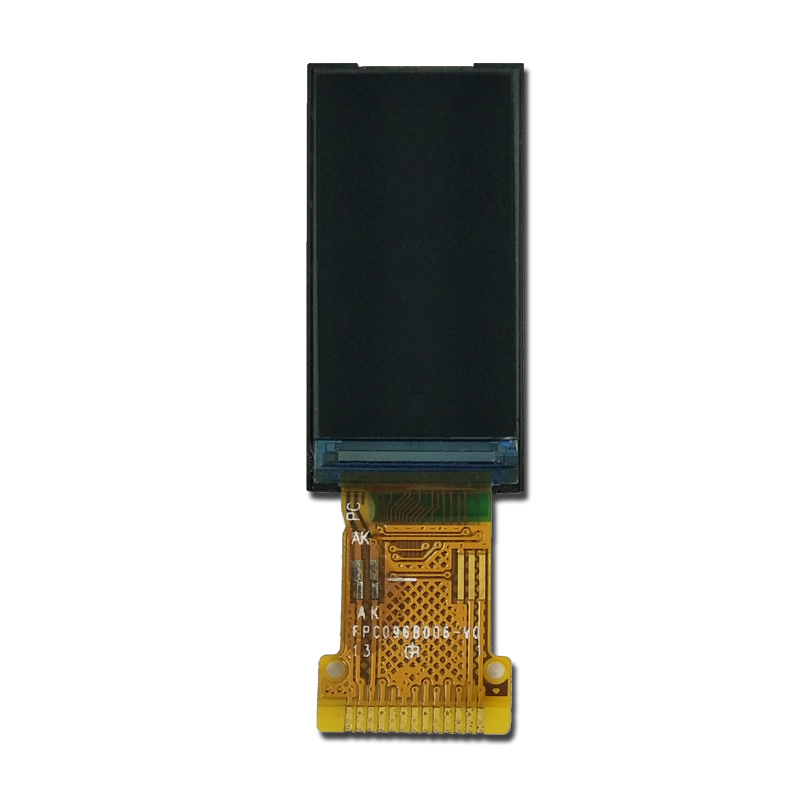

BO64128-01
0.96''
64x128 dots
14.00x28.00x1.23 mm
11.86x22.74 mm
10.86x21.74 mm
13 PIN
White
SH1107
I2C / SPI
20
BO64128-10
0.96''
64x128 dots
24.74x16.90x1.42 mm
22.74x11.86 mm
21.744x10.864 mm
13 PIN
White
SSD1315Z
SPI
21
BO64128-42
0.96''
64x128 dots
27.50x27.80x2.61 mm
23.74x12.87mm
21.75x10.86 mm
8 PIN
White
SSD1306BZ
SPI
